Vantrue USB-C Dash Cam Hardwiring Kit + Fuse Taps (For USB-C Models)
Vantrue USB-C Dash Cam Hardwiring Kit + Fuse Taps (For USB-C Models)
- 【Compatible 12 – 24V Vehicles】This hardwire kit connects the camera directly to the car, truck, bus, suvs, or big rig for continuous power, accepts voltage from any type of vehicles runs on 12 – 24V.
- 【24/7 Parking Surveillance】Directly to the battery for constant 24hrs/7days power to protect against theft when your car is in the parking lot.
- 【ACC mode with Switch Button】With the switch button, you can easily set the hardwire kit to ACC mode, so it can turn on and off with the ignition and you don't have to worry about plugging in the charger, or turning the dashcam on, or any such stuff.
- 【Low voltage protection】It has a smart low voltage protection system that will automatically shut off the power to your dash cam when the battery voltage drops to 11.6V or 23.2V, thus preventing it draining the battery.
- 【Mulitiple uses】Type C USB plug compatible with all Type C dash cams, GPS navigator and radar detector etc, it always frees up the cigarette lighter for other devices. Please note: It doesn't work for other Vantrue Dash Cams, it only work for N5, N4, N2 Pro(2023) E1, E1 Pro, E1 Lite, E2, E3, E360, E360 Ace, N2S, S1 Pro, and older USB-C models.
Product Description
|
|
|
|
|---|---|---|
24/7 Parking Surveillance
|
Compatible 12 – 24V VehiclesThis hardwire kit accepts voltage from any type of vehicles runs on 12 – 24V, works perfect for car, truck, bus, suvs, or big rig for continuous power. |

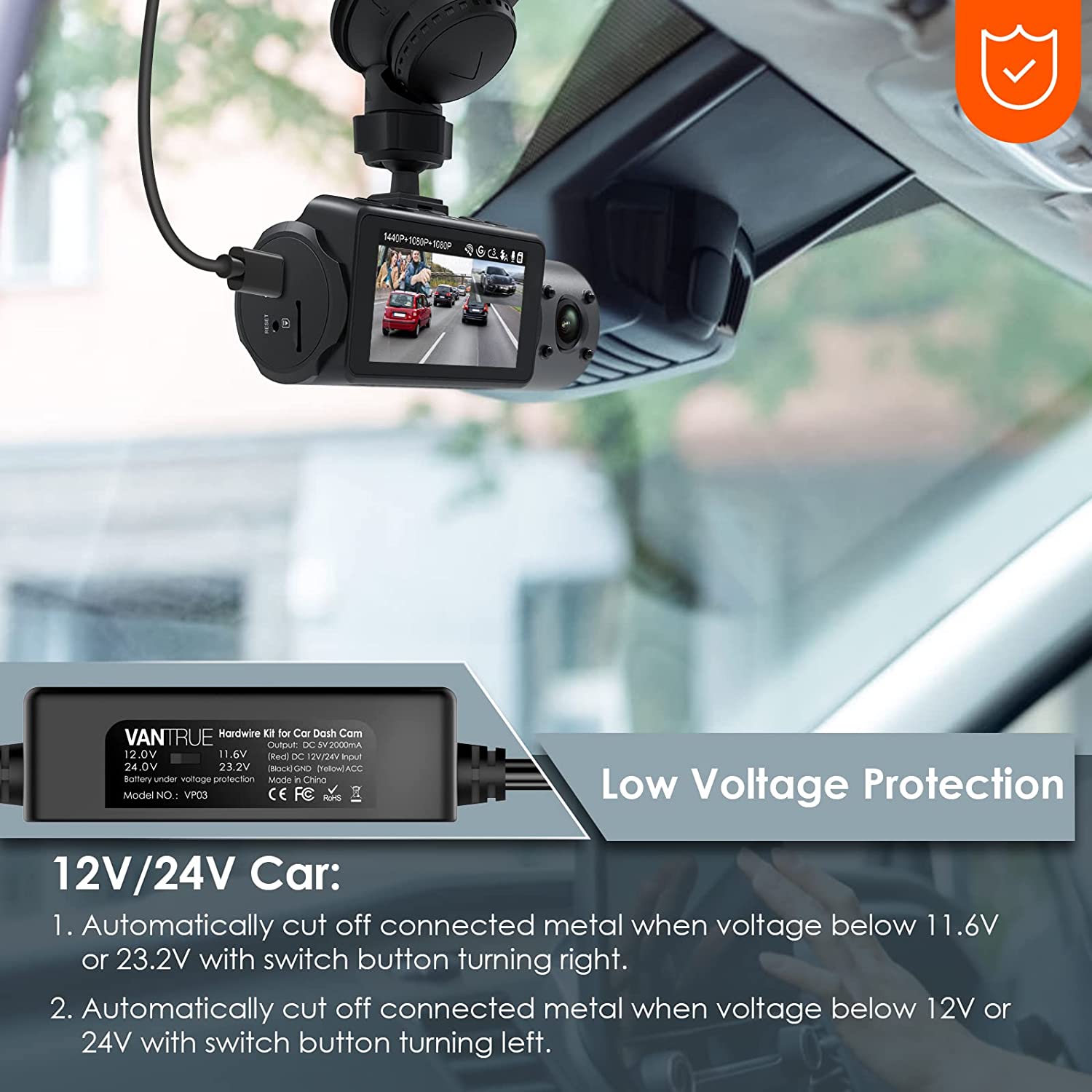

Low Voltage ProtectionSmart low voltage protection automatically shut off the power to your dash cam when the battery voltage drops to 11.6V(12V cars) or 23.2V(24V cars), thus preventing it draining the battery. |
|
|
|
|
|---|---|---|

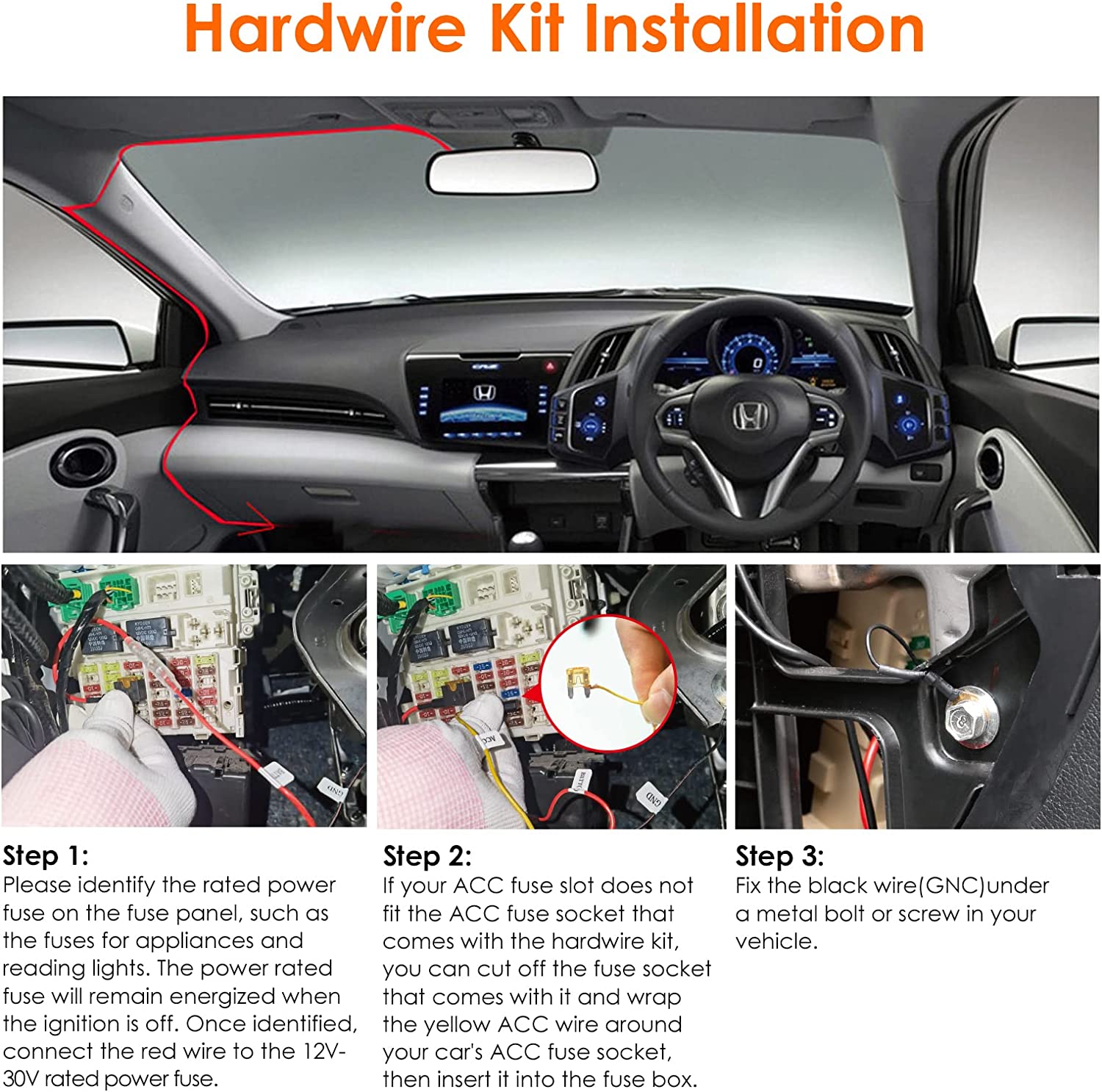

Find the Correct Fuse SlotOpen the fuse box, find the correct fuse slot for your hardwire kit. If you need to find an ignition switched fuse, put the key in the vehicle, find the fuse which is not lit up while the car is off, and test it by turning the car on to see if it lights up. If your kit requires constant power, turn off the car and remove the key to see which fuse slots stays lit on. |
Connect the Red Wire and Yellow WireOnce you've determined which fuse slots you need to use for your hardwiring kit you can crimp the red wire of your hardwire kit onto the Add-A-Fuse. Gently remove the fuse you identified. Install the fuse you just removed into the installation kit add-a-fuse circuit. Plug the add-a-circuit into the fuse box in the correct orientation. And the Yellow should be connect to the ACC. |
Ground the Hardwiring KitSlip the black wire (which is in the shape of a C) under a metal bolt or screw in your vehicle (this is the ground wire). Check that it is not attached onto plastic parts. You will typically need a socket wrench to loosen the nut or bolt that you choose to ground with. To attach the grounding terminal, loosen the nut or bolt enough to slip it in and tighten it back up afterwards. |
Key Features
- Compatible with 12-24Vdc for car or truck installations.
- Perfect for 24/7 Parking Surveillance.
- Low voltage protection protects against battery dying.
- Works well with Vantrue N4 dash cam and all the other type c usb dash cams!
- Keep 12V or 24V outlet free, charge your phone at the same time.
- Less static when you’re listening to the radio. Less Complicated Install with the installation video.

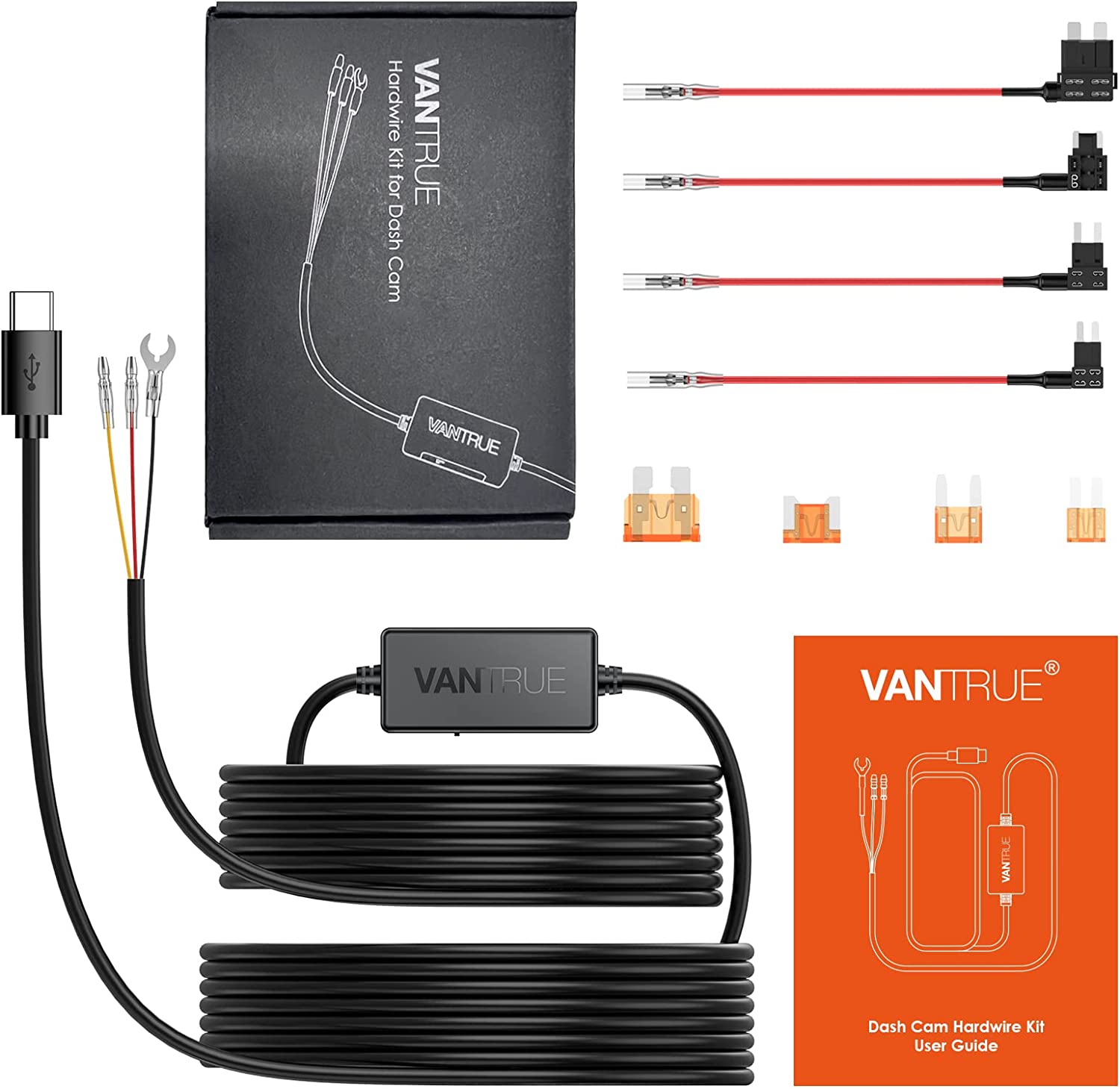

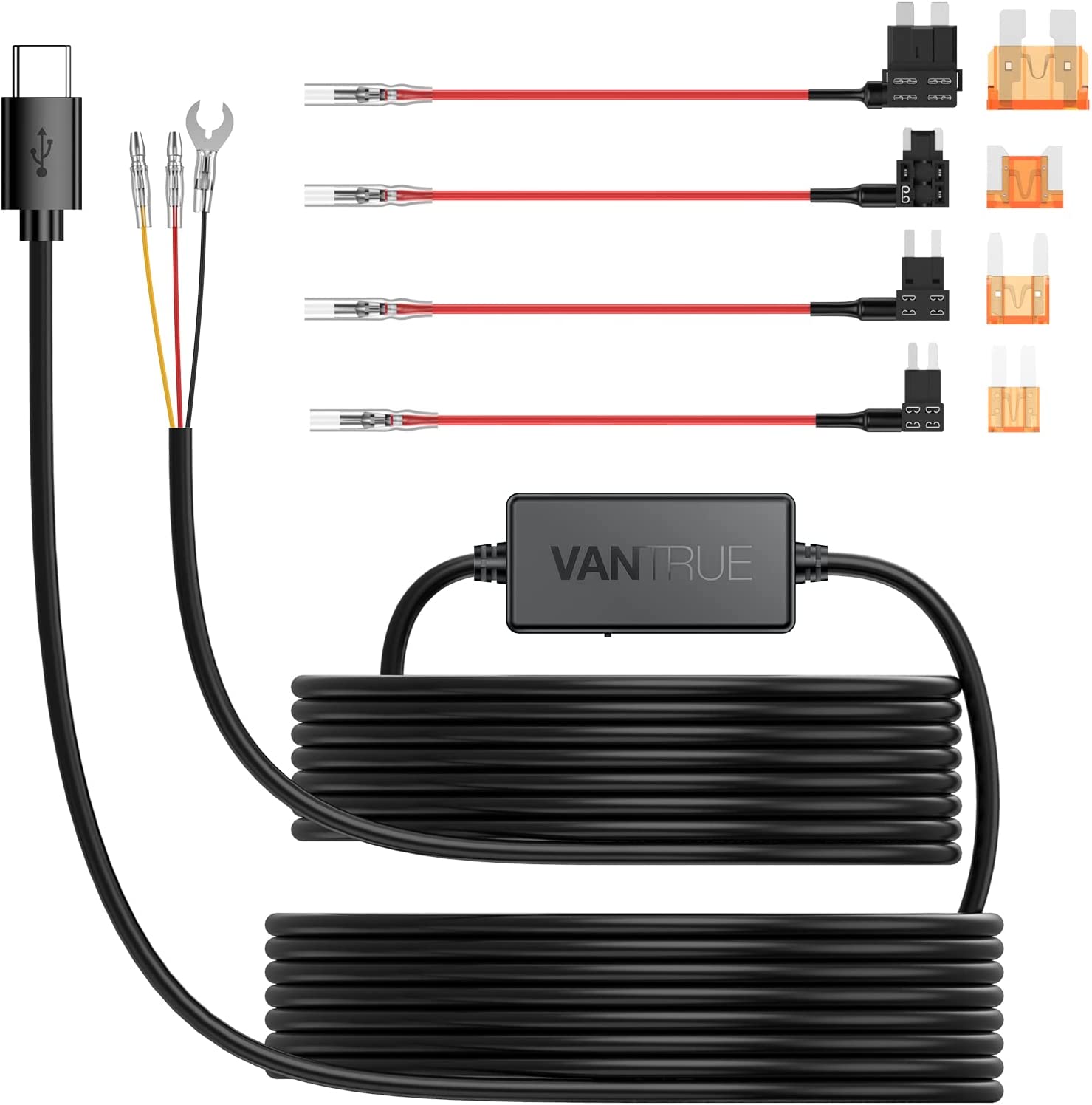

What’s in the box?
- Vantrue 11.5ft Type C USB Dash Cam Hardwire Kit with User Manual
- Mini/LP ACN Add-A-Circuit Fuse Holder
- Mini ACS Add-A-Circuit Fuse Holder
- ATO ACU Add-A-Circuit Fuse Holder
- Micro2 Add-A-Circuit Fuse Holder
Technical Details
- Connector: Type C USB Connector
- Input Voltage: DC 12V-24V
- Output Voltage: 5V
- Output Current: 2A
- Working Temperature: -22°F to 167°F (-30°C to 75°C)
- Cable Length: 11.5ft
- Low Voltage Protection: 11.6V for 12V vehicle; 23.2V for 24V vehicle.
